Multifunctional MOV Metal Oxide Varistor Fireproof Durable 14D561K

Varistor 14D561K is a semiconductor ceramic element made of zinc oxide. Its resistance varies linearly with the applied voltage. It has the characteristics of small volume and large flow rate. Main semiconductor device protection, household appliances surge over voltage protection, communication, measuring instrument over voltage protection.

Features:

1. Small size, large flow capacity and energy tolerance;

2. Epoxy resin insulation sealing;

3. Response time: < 25ns

4. Ambient temperature: -40℃ ~ +85℃

5. Insulation resistance ≥500 MEgohms

6. Pressure-sensitive voltage temperature coefficient: -0.5%/℃

7. Chip diameter: 5, 7, 10, 14, 20, 25, 32, 40, 50mm

8. The allowable deviation of voltage sensitive voltage is K±10%, L±15%

Low leakage current

10. Superior limiting voltage characteristics

Application:

1. Transistor, diode, IC, thyristor and semiconductor switching components and a variety of electronic equipment overvoltage protection;

2. Surge absorption of household appliances, industrial appliances, relays and electronic valves;

3. Electrostatic discharge and noise signal elimination;

4 leakage protection switch over voltage protection;

5. Lightning protection and overvoltage protection for communication equipment such as telephones and SPC switches.

Voltage sensitive voltage: 18V-1800V

Film size: 5D, 7D, 10D, 14D, 20D

Footpitch: P: 5.0mm, P: 7.5mm, P: 10MM

Common models:

7D431K P:5.0MM
7D471K P:5.0MM
7D561K P:5.0MM
10D431K P:7.5MM
10D471K P:7.5MM
10D561K P:7.5MM
14D431K P:7.5MM
14D471K P:7.5MM
14D561K P:7.5MM

Multifunctional MOV Metal Oxide Varistor

Fireproof MOV Metal Oxide Varistor

14D561K

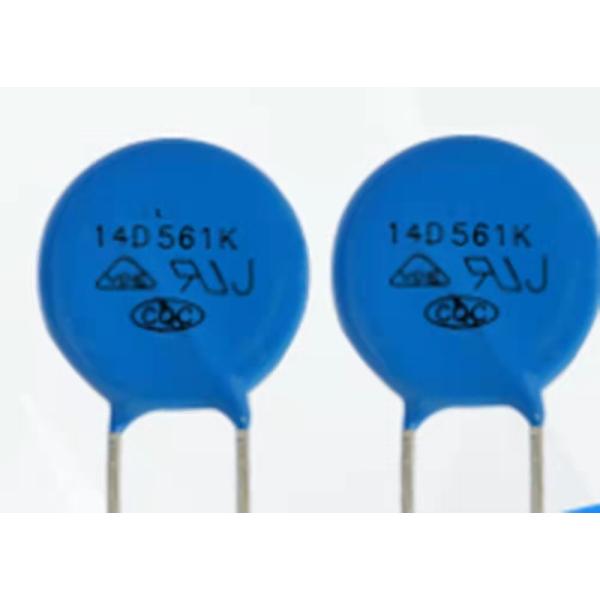

Multifunctional MOV Metal Oxide Varistor Fireproof Durable 14D561K Images
