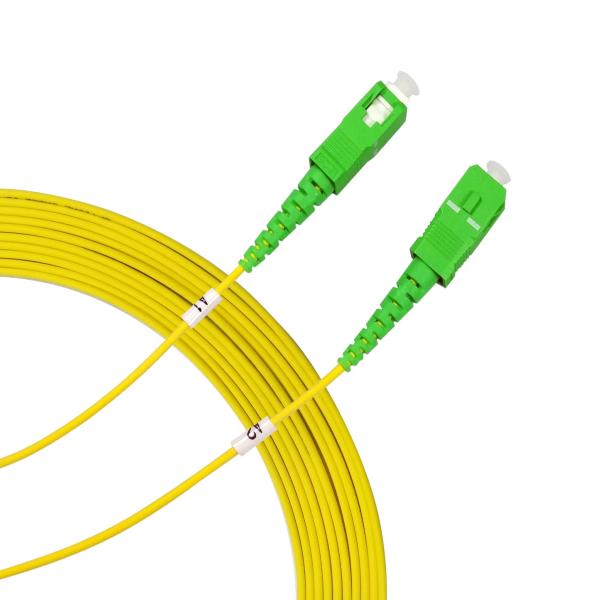

Simplex Fiber Optic Cable Patch Cord

Brand Name : OEM

Model Number : SC APC

Place of Origin : Guangdong, China

MOQ : 500 Pieces

Price : RMB 8.0-9.0/PCS

Payment Terms : T/T

Supply Ability : 50000 Pieces per Month

Delivery Time : 10-15 work days

Packaging Details : We normally have each patch cord packaged in a square sealed plastic bag and put foam pad in carton.15 pcs/box

Type : Fiber Optic Patch Cord

Use : FTTX

Connector : SC APC

Fiber Type : G657A2

Mode : Single Mode

Insertion Loss : ≤ 0.3 dB

Cable Outer Diameter : 1.6 mm

Cable Length : 1 Meter ,5 Meter or Customized

Contact Now

1.6mm SC APC to SC APC SM SX Fiber Optic Patch Cord Single Mode

Feature

1. SC APC to SC APC SM SX Fiber Patch Cord

2. SC Connector

3. APC End Face

4. Single Mode

5. Simplex (1 Core)

6. 1.6mm cable outer diameter

7. 100% tested in end face visual inspection,no scratch

8. LSZH cable sheath-flame retardant

9. Kevlar aramid yarn - flame retardant

3 Main index of 3D interference test
Radius of curvature
Apex offset
Fiber height	SC APC 3D test pass rate is over 85%
Connector	SC
End face	APC
Radius of curvature	7 μm - 25μm
Apex offset	50μm
Fiber height	+50μm ~ -100μm
Fiber type	G652D,G655 ,G657A1,G657A2
APC connecto	Insertion loss ≤0.3dB, Return loss ≥60dB
Tilted angle	8 +0.5/0.3
